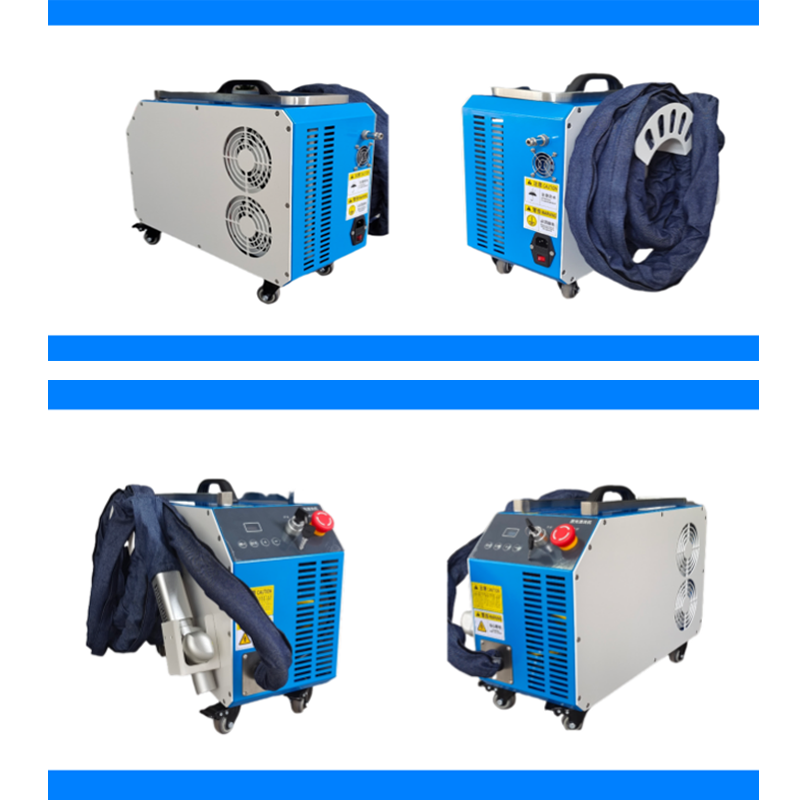

It comes with 200w /300w GZ Q Pulse fiber laser source. When aimed at the metal surface, the dirt layer and any oxides underneath will absorb the energy and evaporate, along with thermal pressure and shock waves to sublimate the rust and separates it from the metal without damaging the piece.
0086-150-1350-9330
Features
1. The handheld gun is small in size and light in weight.
2. One-click start; System intelligent implementation detection system; Security lock; Intelligent standby.
3. Integrated a variety of cleaning modes, fool operation, without too many parameters.
4. Non contact cleaning.no damage parts substrate.
5. No chemical cleaning solution is required.
6. High efficiency and environmental protection.
Application
1. Removal of the coat layer on the surface of metal or glass, and quick paint removal.
2. Quick removal of rust and various oxides.
3. Removal of grease, resin, gum, dust, stains and production residues.
4. Surface roughening of metal and glass.
5. Removal of paint, rust, oil stains, oxides and residues produced by welding before welding or adhesion.
6. Removal of oil stains of precision parts after production and processing.
7. Quick cleaning for maintenance of nuclear power parts.
8. Oxide treatment, paint removal and rust removal during the production or maintenance of aeronautic and astronautic
weapons and vessels.
9. Metal surface cleaning in small space.
10. Cultural relic cleaning, rock cleaning, building exterior surface cleaning, steel structure anti-corrosion engineering.
11. Mold cleaning, such as tire mold, electronic mold and fold mold.
Technical Parameters
| Type | MY-C200H /MY-C300H | |||||||||
| Power | 200W /300W | |||||||||
| Max. Cleaning Width | 100mm | |||||||||
| Optional Lens | F163 /F254 /F330 | |||||||||
| Laser Source | GZ | |||||||||
| Scan Head & Controller | WISELY LASER | |||||||||
| Lifespan of Fiber Laser Source | 100,000 Hours | |||||||||
| Cooling Mode | Air Cooling | |||||||||
| Cleaning Mode | 2 | |||||||||
| Optical Fiber Cable Length |
200W=3M 300W=4.2M |
|||||||||
| Operation Environment | 0℃~45℃ | |||||||||
| Power Comsuption |
200W<=1000W 300W<=1650W |
|||||||||
| Dimension |
200W≈500*295*405mm 300W≈600*295*453mm |
|||||||||
| Package Size |
200W≈660*500*380mm |
|||||||||
| Net Weight |
200W≈25kg 300W≈30kg |
|||||||||
| Gross Weight |
200W≈30kg 300W≈35kg |
|||||||||
payment
100% or 40% prepaird before production, balance payment before shipment. (Negotiable）
Bank Wire, Paypal, Western Union, Credit Card.
Shipment
Machine will be sent out 5-10 working days after receiving the payment.
By Express: 6-10 days.
Packaging
Carton Packaging.

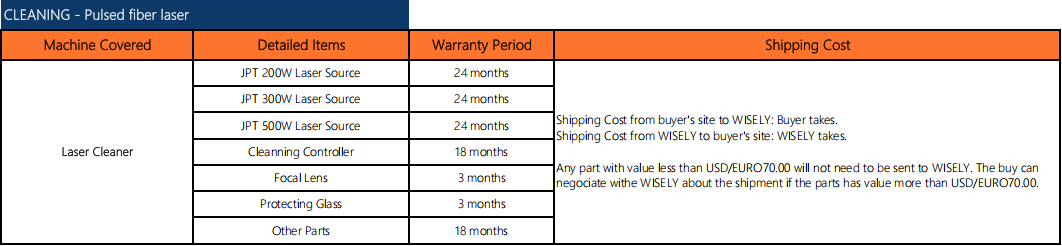

Warranty
Whole machine has a warranty period of 12 months since the production date.
Training
1~3 working days training free of charge in factory or online training via TeamViewer, Skype, WeChat, FB.
